3-in-1 Washing Filling Capping Machine For Glass Bottle Beer
Description:
1. The beer filling machine is used in production of beer drink packed in glass bottles with crown cap.
Washing, filling and sealing parts are integrated in one machine, 3 in 1 type.
2. The whole machine is controlled by PLC with touch screen as the human-machine interface.
It is with English operation, easy to operate.
The filling and capping will be stopped automatically when there is no bottle.
When bottles are cramped wrongly or when caps are not available, the machine can be
stopped automatically.
3. The frequency changing technology is used to adjust the operation speed sleeplessly.
The production capacity can be displayed digitally and can be adjusted conveniently.
4. Bottle washing part:
Spring cramps are used in the bottle washing process.
The empty bottles can be turned over 180~ along the conveying rail.
There are two times of internal and external washing, the efficiency of bottle washing is high.
5. Bottle filling part:
The beer filling machine is designed with advanced technology.
The high quality of NanQing beer filling valve is adopted for filling the beer, with fast filling speed,
high filling precision, stable filling function, long life span to guarantee the quality.
The amount of liquid is accurately controlled and the dropping and leakage are avoided.
6. Bottle sealing part:
The crown cap pressing system is used for crown cap sealing. It is with automatic cap sorter,
cap loader, and cap sealing pressing head.
7. As the customer’s need, the filling machine is made with automatic cap lifter for easy lifting caps
into the cap sorter, then which will save a lot labor to put the caps into the cap sorter up the sealing part.
Applications:
It's used to filling beer in glass bottle - crown cap, with bottle washing, filling, sealing machine.
Widely used in every beer factory, beer production line.
| Equipment Type | Automatic |
|
Bottle Type | Round or square glass bottle Volume 200 - 1500ml Bottle diameter 50-100mm Bottle height 160-340mm |
| Output <bph> | up to 18000 bph |
| Your product | Beer / wine / vodka / fruit wine and so on |
| Certificates | CE / SGS / ISO 9001 |
1. Glass bottle carbonated drink filler Triblock Bottle in-feed system
Inlet screw with star-wheel cooperate input the bottle, the suitable bottle is 250ml-1500ml.
Glass Bottle Washing.
1.Rotary rinser: applicable for wine, beverage and water cleaning.
2.The new bottle is transported through the separation screw and starwheel by the clamp and turn over device; bottle neck is held upwords, after aseptic water rinsing, the bottle neck goes up and transported to another process.
3.The rinsing contact part and out cover adopt the stainless steel material
4.Open design gear driving.

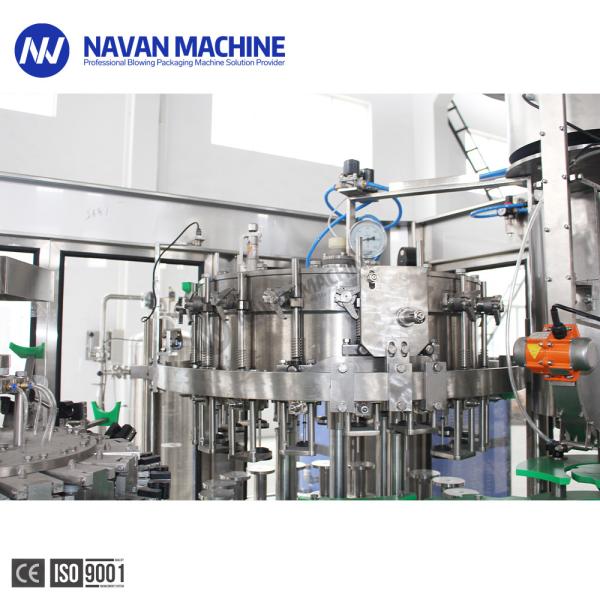

Glass Bottle Filling
1.Adopt the German technology, utilize the isobaric filling principle design, achieve to fill the cleaned bottle
2.Adopt isobaric mechnical valve ,fast filling with high precision filling level.
3.Adopt the guiding pole with cover function ;bottle held elevation desgin , ensures the complete seal between bottle neck and filling valve ,avoids the leakage.
4.Equip with the anti break device ;bottle break cleaning ,avoiding the next botte .
5.Equip with complete CIP cleaning function
Capping Part
1.Cappig part :sorted cap is capped on the filled bottle ,and then transported to the next step.
2.Capper rotates through the speed reducer machine .The cap leaves the hopper under the centrifugal function .The exit is equipped with the cap reverce dvice ,when the reverce cap comes ,it is changed to the right direction ;the cap quantity is controlled by the photoelectric switch ,ensures the caping falling effect.
3.If the container has the cap ,the second cap cannot go in ,which utilizes the cap .
4.And it is equipped with photo eletric swith on the slding trail ,when it tests that there is no cap ,it stops automatically.
Competitive Advantage:
1. Our machine is with good quality and price, we can make the machine customized for you if need.
2. We are a professional manufacturer in every kind of beverage production machine.
3. We have the certifications of ISO, CE and so on.
4. Our company machines are exported to many countries abroad every year.
5. We can offer free technician support and consultation to help you to order a new equipment and start a new company.
6. We can offer one year guarantee for the machine you ordered freely, forever technology supports in our machine and related machine.
7. W can send our technician to your country for machine commissioning and instruction conveniently.
8. Your inquiry will be replied within 24 hours, you are welcome to contact me in your convenience, please feel free to contact me if any question you have.
